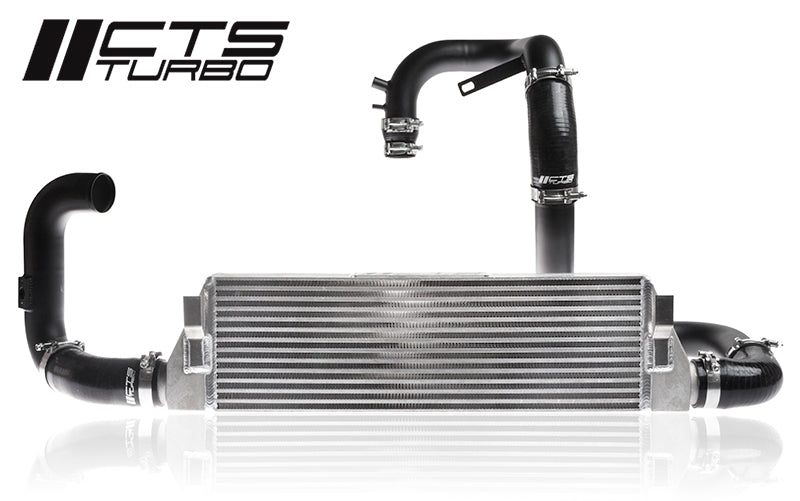

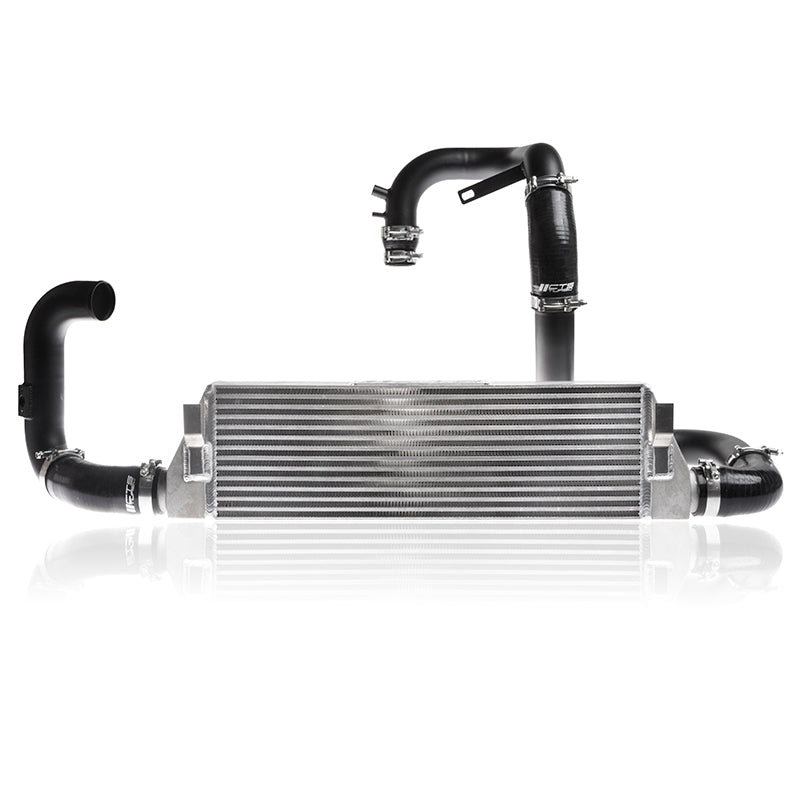

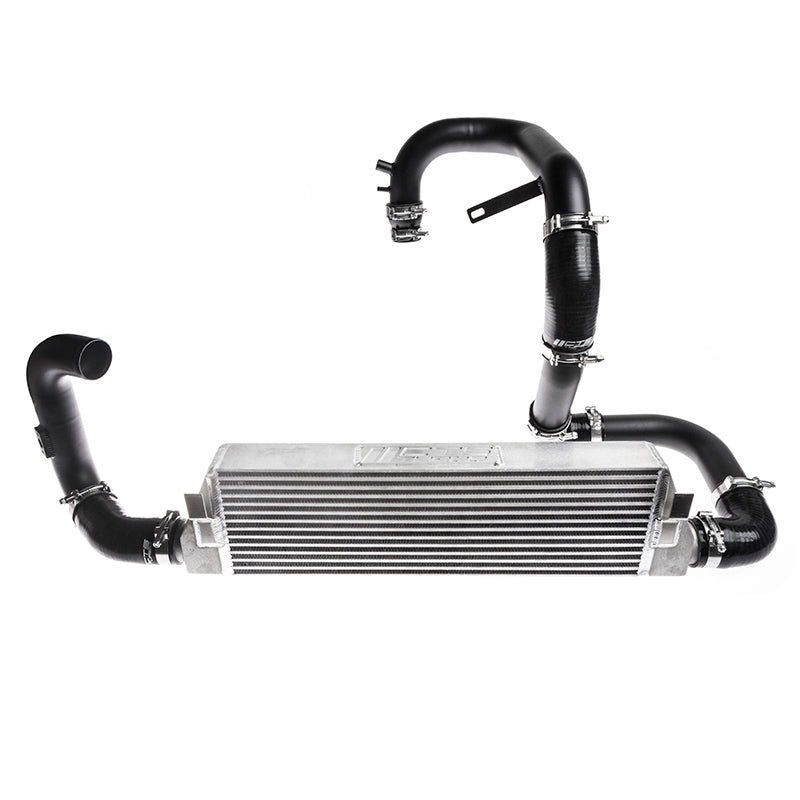

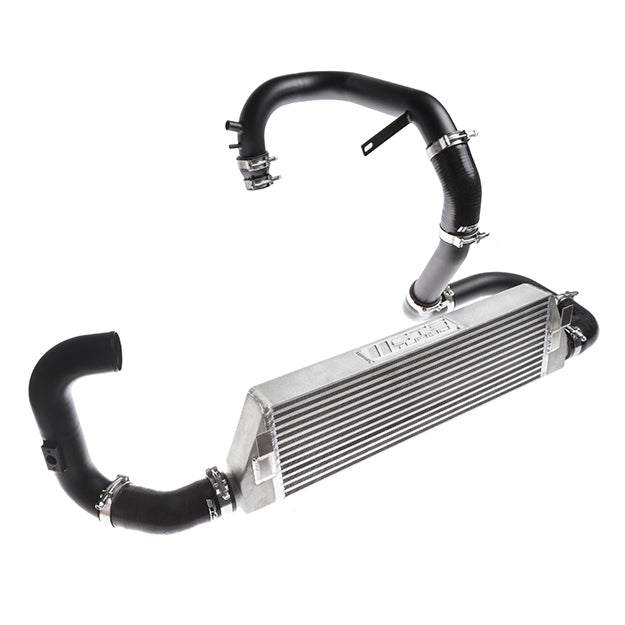

The CTS Turbo FMIC Kit for the VW MKIV 1.8T (Golf/GTI/Jetta) is an excellent upgrade for any stock or modified car. \nThis kit provides significant cooling improvement compared to the competition; and substantial cooling benefits over the factory setup. Improvements can be attributed to the high-density intercooler core; and cast aluminum end tanks. Each pipe in this kit has been "bead rolled" so you don't have to worry about your boost tubes blowing off or leaking. \n \nIf that wasn't enough for you; this kit also uses BLACK aluminum piping; 4ply silicone couplers and stainless steel T-Bolt clamps. \nThis intercooler uses cast aluminum end tanks and a high-density pressure tested core. The intercooler is rated at 450 crank HP and measures 25.25"x8"x3". End tank to end tank is 35.5". \n \nProduct features: \n \n

\n
• Proprietary high-density bar/plate core
\n
• Mandrel-bent 2.5" piping with black powder coat
\n
• 4 ply silicone couplers and stainless t-bolt clamps
\n
• Capable of supporting over 450hp or over 750HP with larger core
\n
• Compatible with stock turbo (K03; K03s; K04 or ATP Eliminator kit)
\n

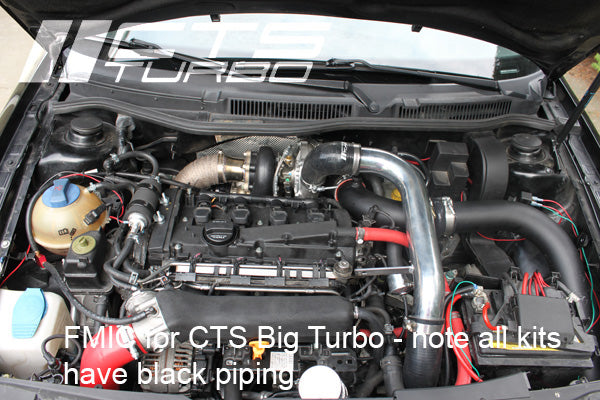

• Compatible with big turbo applications (must use CTS exhaust manifold or custom work may be required)
\n

\nFits these vehicles: \n \n

\n
• 1999.5 - 2005 VW Jetta 1.8T incl GLI manual transmission only
\n
• 1999.5 - 2005 VW Golf 1.8T incl GTI manual transmission only
\n

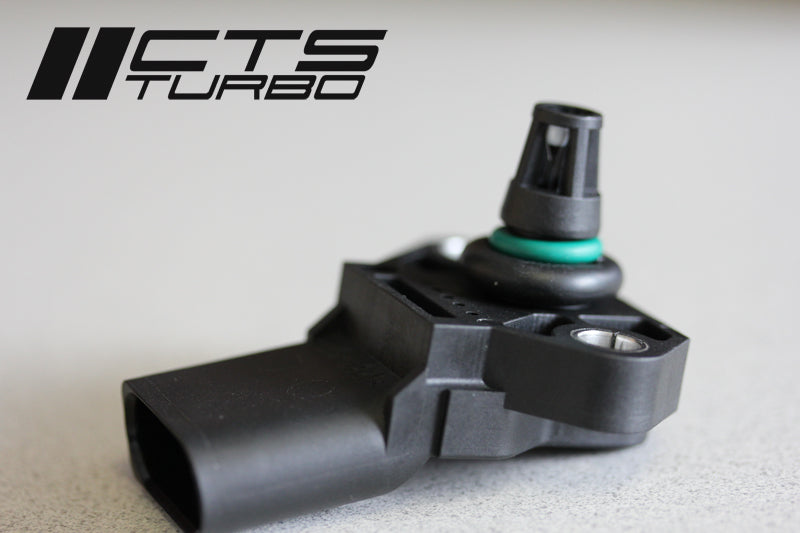

\nSee the picture above for the proper installation of MAP sensor o-ring (for late MK4 models). Make sure to keep the factory o-ring (green) and install the supplied sealing o-ring over it. Sensor not included in the kit. \n \nNote: If you're interested in maintaining the sleeper look; rest assured the stock bumper grilles can be installed on Golf/GTI/Jetta with bumper trimming. Cutting required to bumper rebar and bumper. \n \nClick Here For Install Photos
